Block Ice Machines

Ice Machine

Nordon Block Ice Machines are robust, easily maintained and very reliable. As a result many units are used in remote locations throughout the Pacific Islands where the infrastructure and maintenance support is limited.

Nordon Block Ice Machines produce ice from fresh water in containers that are immersed in refrigerated brine. After approximately eleven hours, ice is ready for harvesting.

Product Info

Block Ice Machines engineered to be robust, easily maintained and very reliable.

Model N150:
72 Kgs Ice per 11 hour harvest

Model N400:
192 Kgs Ice per 11 hour harvest

Model N800:
384 Kgs Ice per 11 hour harvest

Block Ice Machine Overview

Nordon Block Ice Machines produce ice from fresh water in containers which are immersed in refrigerated brine. After approximately eleven hours ice is ready for harvesting.

All Nordon ice machines are manufactured as self-contained one-piece units with brine tank and refrigerating unit mounted on a common frame. The refrigerating systems are pre-charged with environmentally friendly refrigerant and electrically wired for connection to the power supply.

All machines are tested before they leave our factory.

Ice production capacities range from 144kg (315 lb) to nearly 800 kg (1764 lb) per 24 hours. See the Nordon ice maker product comparison table below:

Nordon Block Ice Machines are supplied with everything necessary to produce ice, all you have to do is supply the water and electricity !

Typical applications for Nordon Block Ice Machines include:

  • Poultry Producers
  • Petrol stations
  • Fishing industry
  • Caravan parks
  • Party Ice Suppliers
  • Caterers
  • Hotels
Nordon block ice machiner

The Nordon Model N800 Block Ice Maker

Nordon Ice Maker Models

Model N150

Production

Harvest: 72 Kgs
Harvest per day: 2 per day
Daily ice output: 144 Kgs
Blocks per harvest: 8 x 9 Kg.

Electrical

Voltage: 240V 50Hz
Power Input: 1 Phase 0.47kW (5/8 HP)

Dimensions Uncrated

840 x 975 x 1060
Volume: 0.87 M3
Weight: 375 Kgs

Dimensions Crated

W x L x H  mm:  995 x 1090 x 1175mm
Volume: 1.22 M3
Weight: 375 Kgs

Model N400

Production

Harvest: 192 Kgs
Harvest per day: 2 per day
Daily ice output: 384 Kgs
Blocks per harvest: 12 x 15 Kg.

Electrical

Voltage: 415V 50Hz
Power Input: 3 Phase 2.24 kW (3 HP)

Dimensions Uncrated

1010 x 2000 x 1080
Volume: 2.18 M3
Weight: 530 Kgs

Dimensions Crated

W x L x H:  1125 x 2120 x 1200mm
Volume: 2.86 M3
Weight: 700 Kgs

Model N800

Production

Harvest: 384 Kgs
Harvest per day: 2 per day
Daily ice output: 720 Kgs
Blocks per harvest: 24 x 15 Kg.

Electrical

Voltage: 415V 50Hz
Power Input: 3 Phase 5.5kW (7.5 HP)

Dimensions Uncrated

1010 x 3230 x 1080
Volume: 3.52 M3
Weight: 845 Kgs

Dimensions Crated

W x L x H:  1125 x 3350 x 1200 mm
Volume: 4.52 M3
Weight: 965 Kgs

Notes:
Approximate production output at 32° C ambient and 21° C water temperature.



Unlock Business Efficiency with the Nordon Ice Maker

In the bustling world of business, time and efficiency are crucial. Every piece of equipment in your workspace should not only serve a purpose but also enhance the daily operation, making tasks simpler and quicker. An incredible addition to your business could be the Nordon Ice Maker – a blend of efficiency, speed, and quality.

Effortless Operation

The Nordon Ice Maker is renowned for its user-friendly design. With simple buttons and easy-to-follow instructions, it takes the hassle out of ice-making. Your staff can focus more on tasks that directly contribute to customer satisfaction and less on figuring out complex machinery. It’s as easy as pressing a button, and voila, ice is ready!

Speed and Efficiency

Time is a commodity, and it’s often in short supply in the business world. With the Nordon Ice Maker, you can produce large quantities of ice in a matter of minutes. Say goodbye to long waits and say hello to instant service, meeting your customers’ needs promptly and securing their loyalty.

Quality Ice, Every Time

Consistency is the hallmark of a trustworthy business. The Nordon Ice Maker guarantees uniform ice cubes that are perfect in size and shape every time. Presenting your products or services with a consistent touch adds to your business’s professional outlook, earning your clientele’s trust.

Cost-Effective

A wise business investment is one that saves money in the long run. By producing ice in-house with the Nordon Ice Maker, you can cut down on costs associated with outsourcing or purchasing pre-made ice. Every penny saved is a penny earned, and those pennies can quickly add up to significant savings.

A Sustainable Choice

In an age where sustainability is not just appreciated but expected, opting for an ice maker that is energy efficient is a fantastic move. The Nordon Ice Maker consumes less power, reducing your energy bills and promoting a greener, more sustainable business operation.

Conclusion

Incorporating the Nordon Ice Maker into your business enhances operational efficiency, saves costs, and promotes a consistent and professional service. It’s not just an ice maker; it’s a tool that can be pivotal in steering your business towards greater heights of success and customer satisfaction. Make the smart choice today – efficiency, quality, and cost-saving are all but a Nordon Ice Maker away!

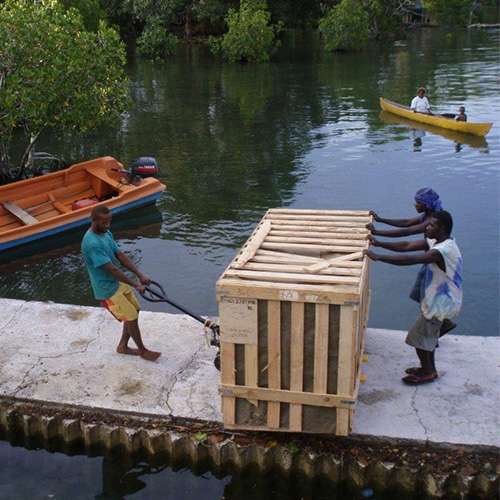

Ice Machine being transported 500x500 1

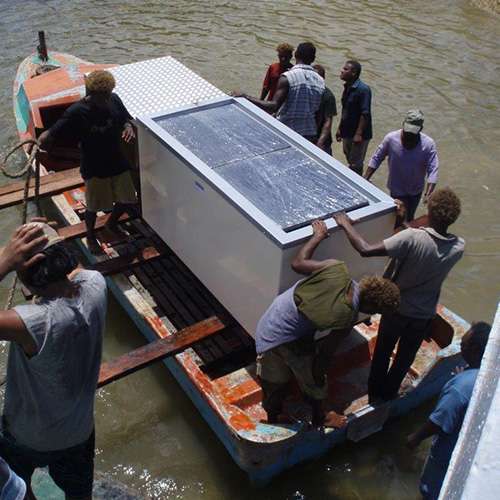

Ice Machine being transported2 500x500 1
Ice Machine being commissioned 500x500 1
