CNC Machining Milling: How it Works and What You Need to Know

Exploring the World of CNC Machining Milling: How it Works and What You Need to Know

In the ever-evolving world of manufacturing, precision and efficiency are paramount. And when it comes to achieving these qualities, CNC machining milling stands out as a game-changer. From large-scale industrial operations to small workshops, this cutting-edge technology is revolutionizing the way things are made.

CNC machining milling is a process that involves computer-controlled machines and specialized software to shape and cut materials like metal, plastic, and wood precisely. By following a set of instructions, these machines can create intricate designs and prototypes with impeccable accuracy, surpassing human capabilities.

In this article, we will take a deep dive into the fascinating world of CNC machining milling. We’ll explore its inner workings, from the basics of how it functions to the various components you need to know about. Whether you’re an industry professional looking to enhance your knowledge or a newcomer curious about this advanced manufacturing technique, we’ve got you covered.

So, buckle up and get ready to unlock the secrets of CNC machining milling. By the end of this article, you’ll have a comprehensive understanding of one of the most transformative technologies in the manufacturing landscape.

The history and evolution of CNC machining milling

CNC machining milling has come a long way since its inception. It all started in the late 1940s when the first Computer Numerical Control (CNC) machine was developed. This early version was limited in its capabilities and required punch cards to input instructions. However, it laid the foundation for what would become a revolutionary technology.

Over the decades, CNC machining milling has undergone significant advancements. The introduction of microprocessors in the 1970s allowed for greater control and precision. As computers became more powerful, the software used in CNC machines became more sophisticated, enabling complex designs and faster production times.

Today, CNC machining milling is an integral part of the manufacturing industry. Its ability to produce high-quality and consistent results has made it indispensable in various sectors, including aerospace, automotive, and medical.

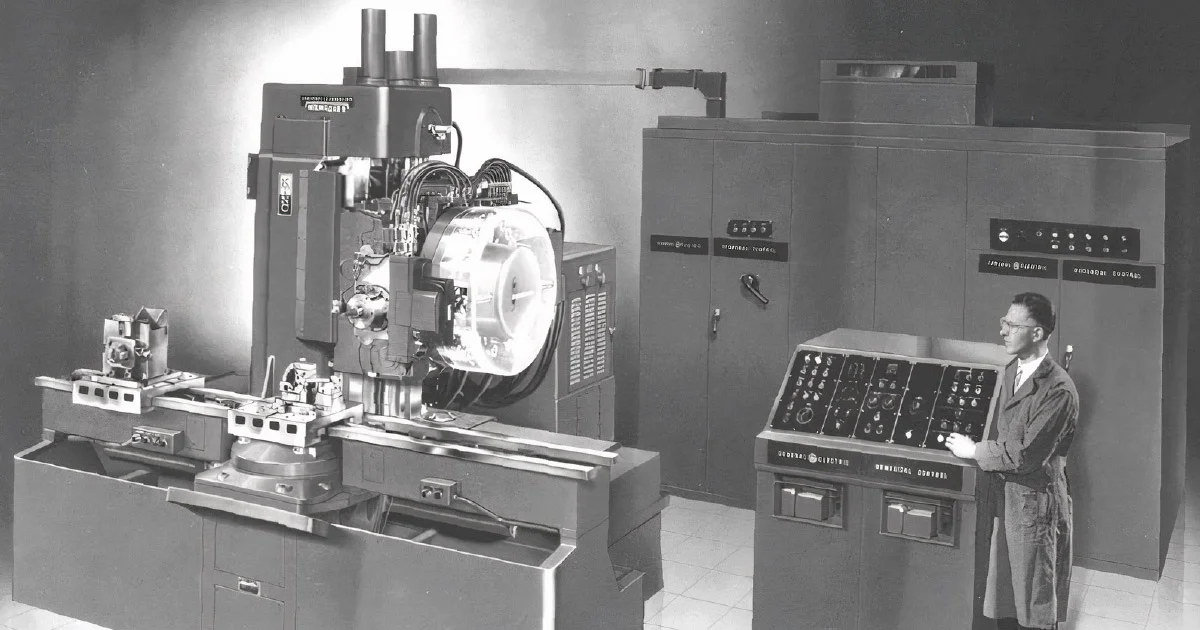

A very early CNC Machine

How CNC machining milling works

At its core, CNC machining milling involves three key components:

• the computer
• the machine
• the cutting tools.

The process begins with the creation of a digital design using Computer-Aided Design (CAD) software. This design is then converted into a set of instructions known as G-code.

The G-code is transferred to the CNC machine, which acts as the “brain” of the operation. It interprets the instructions and controls the movement of the cutting tools.

These tools, such as end mills and drills, shape and cut the material according to the design specifications. The machine precisely moves the cutting tools along multiple axes, including X, Y, and Z, to create the desired shape. The speed and depth of the cuts can be adjusted to achieve different levels of precision and surface finishes.

Benefits of CNC machining milling

CNC machining milling offers a multitude of benefits that make it a preferred choice for manufacturers worldwide.

Precision

One of the key advantages is its unparalleled precision. Unlike manual machining, which relies on human skill and dexterity, CNC machines can consistently produce parts with tight tolerances, reducing the margin for error.

Efficiency

Another major benefit is the efficiency and speed of CNC machining milling. Once the design and instructions are set, the process can run continuously, significantly reducing production time. Additionally, the automation of the process eliminates the need for constant supervision, allowing operators to focus on other tasks.

Machining Complex designs

CNC machining milling also enables the production of complex and intricate designs that would be challenging or impossible to achieve manually. This opens up new possibilities for innovation and pushes the boundaries of what can be created.

Types of CNC machines used in milling

There are several types of CNC milling machines available, each with its own set of capabilities and applications. The most common types include:

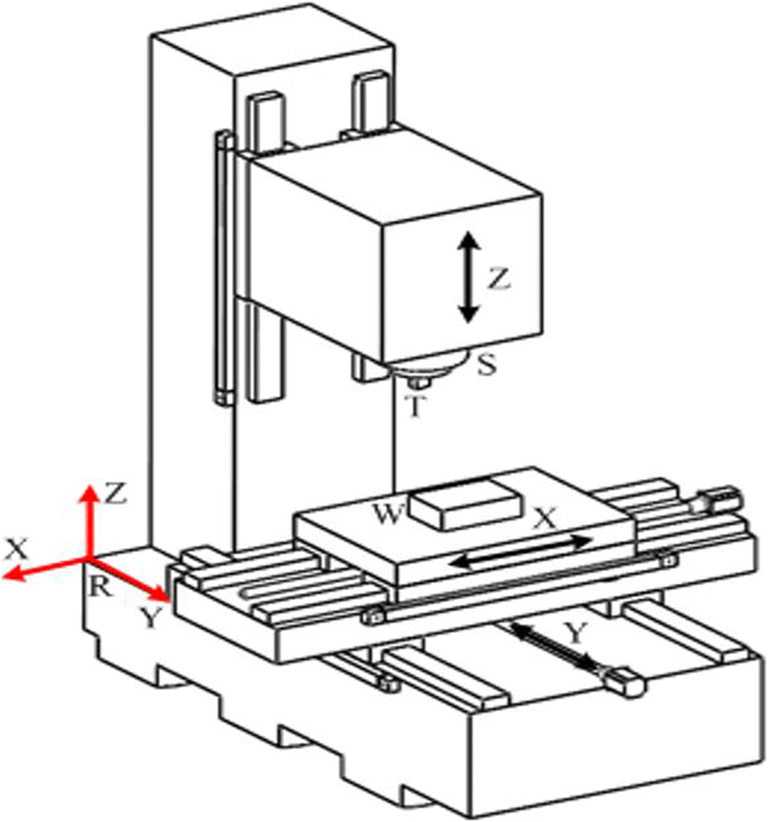

1. Vertical Machining Centers (VMCs): These machines have a vertical spindle orientation, making them suitable for cutting vertically or at an angle. VMCs are versatile and can handle a wide range of materials.
2. Horizontal Machining Centers (HMCs): HMCs have a horizontal spindle orientation, allowing for efficient chip evacuation and better surface finishes. They are often used for heavy-duty machining and high-volume production.

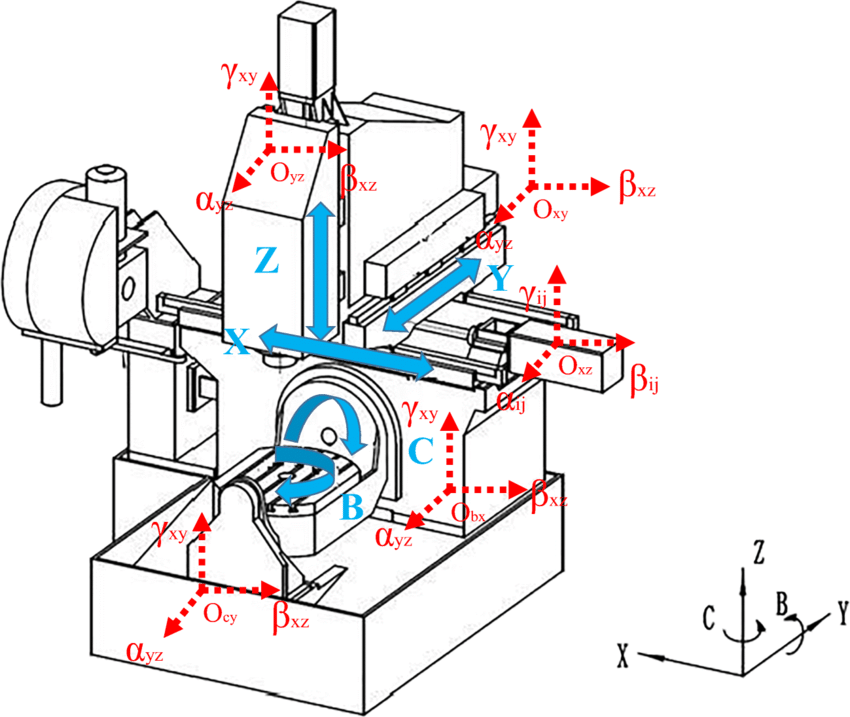

3. 5-Axis Machining Centers: These machines can move the cutting tools along five axes, providing greater flexibility and precision. 5-axis machining centers are ideal for complex geometries and intricate designs.
4. CNC Lathes: While not strictly milling machines, CNC lathes are commonly used in conjunction with milling operations. They are designed for turning cylindrical parts and can also perform drilling and tapping operations.

Important factors to consider in CNC machining milling

When it comes to CNC machining milling, there are several factors that need to be taken into consideration to ensure optimal results. These factors include:

1. Material Selection: Different materials require different cutting parameters and tooling. Understanding the properties of the material being machined is crucial in determining the appropriate tools and techniques.

2. Tool Selection: Choosing the right cutting tools is essential for achieving the desired results. Factors such as tool material, geometry, and coatings play a significant role in tool performance and tool life.

3. Speed and Feed Rates: The cutting speed and feed rates directly impact the efficiency and quality of the machining process. Finding the right balance between speed and feed is crucial for maximizing productivity and minimizing tool wear.

4. Workpiece Holding: Securing the workpiece properly is vital to prevent movement or vibration during machining. Various methods, such as clamping and fixturing, are used to ensure stability and accuracy.

Common applications of CNC machining milling

CNC machining milling finds applications in a wide range of industries and sectors. Some of the common applications include:

1. Prototyping: CNC machining milling is widely used for creating prototypes and proof-of-concept models. Its accuracy and speed make it an ideal choice for testing and refining designs before full-scale production.

2. Aerospace: The aerospace industry relies heavily on CNC machining milling for manufacturing aircraft components. The ability to produce complex parts with tight tolerances is essential for ensuring safety and performance.

3. Automotive: CNC machining milling is integral to the automotive industry, where precision and efficiency are paramount. From engine components to body panels, CNC machines play a vital role in producing high-quality parts.

4. Medical: In the medical field, CNC machining milling is used for manufacturing surgical instruments, prosthetics, and implants. The ability to create intricate and customized designs is crucial for patient care and rehabilitation.

The future of CNC machining milling

As technology advances, the future of CNC machining milling looks promising. Innovations such as machine learning, artificial intelligence, and Internet of Things (IoT) integration are poised to enhance the capabilities of CNC machines further.

These advancements will enable real-time monitoring, predictive maintenance, and intelligent automation, revolutionizing the manufacturing industry.

Additionally, advancements in materials and cutting tools will continue to push the boundaries of what can be achieved with CNC machining milling. From lightweight alloys to advanced composites, manufacturers will have access to a wider range of materials, opening up new possibilities for design and innovation.

Conclusion

CNC machining milling has transformed the manufacturing landscape, offering unmatched precision, efficiency, and versatility. From its humble beginnings to its current state-of-the-art technology, CNC machining milling has revolutionized the way things are made.

In this article, we explored the inner workings of CNC machining milling, from its history and evolution to the types of machines used and the factors to consider. We also delved into its various applications and discussed the importance of choosing the right machine for your needs.

As we look to the future, the possibilities for CNC machining milling are endless. With ongoing advancements and innovations, this transformative technology will continue to shape the manufacturing industry, pushing the boundaries of what can be achieved.

So, whether you’re an industry professional or a curious newcomer, embrace the world of CNC machining milling and unlock the potential for precision and efficiency in your manufacturing endeavors.
